Nitro Piston Kit for GAMO

Quickshot Nitro Piston Kit for GAMO ATS

Transform your shooting experience with the Quickshot Nitro Piston Kit!

• Easy to install. But professional installation is suggested.
• No permanent modifications required — your airgun stays fully original.

Designed for precision and efficiency, this nitro piston (gas ram) kit replaces traditional coil springs or stock nitro pistons, offering smoother cocking, reduced recoil, and improved accuracy.
The Quickshot Nitro Piston Kit is a must-have for enthusiasts seeking enhanced performance and reliability.

This direct replaces factory spring powered and nitro pistons airguns.

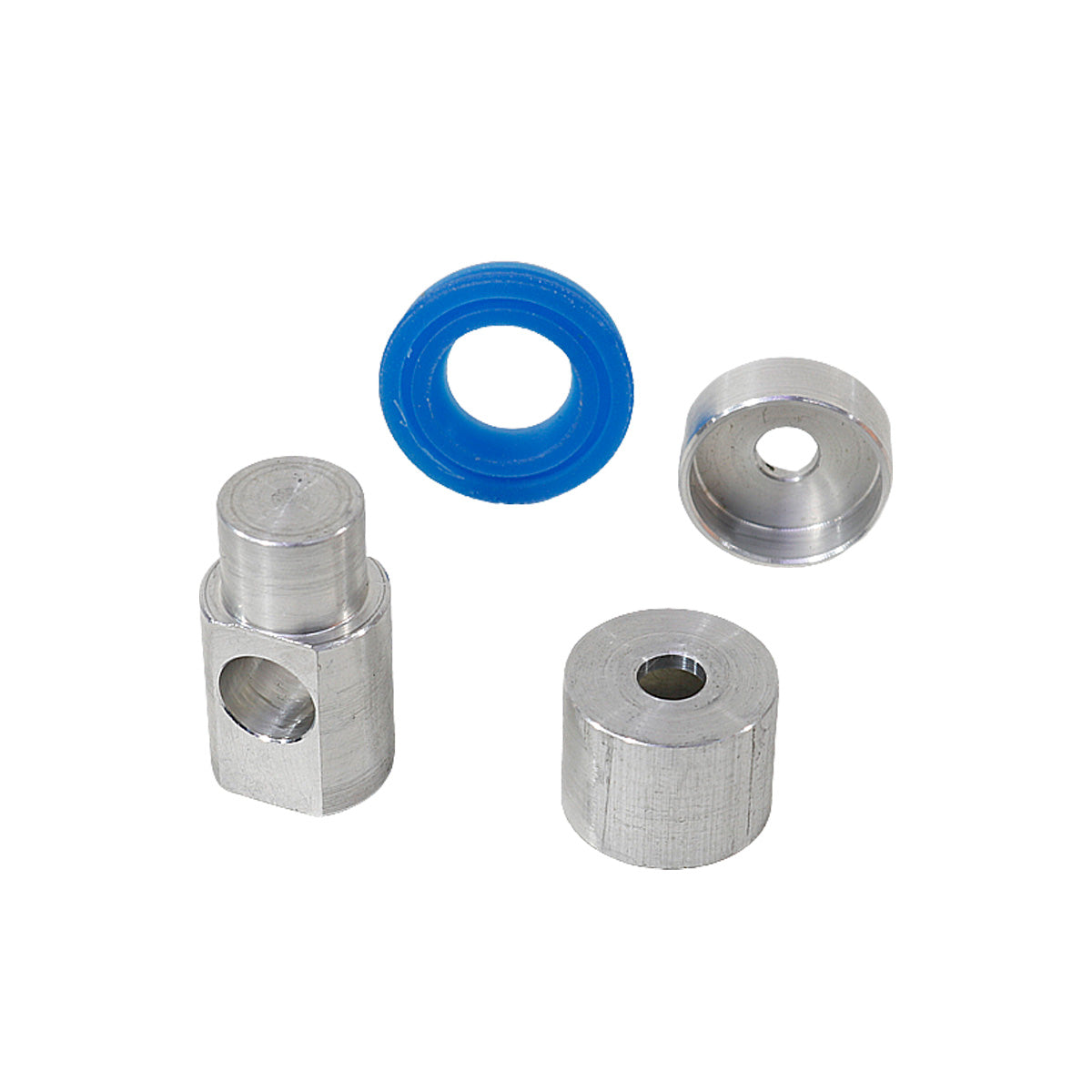

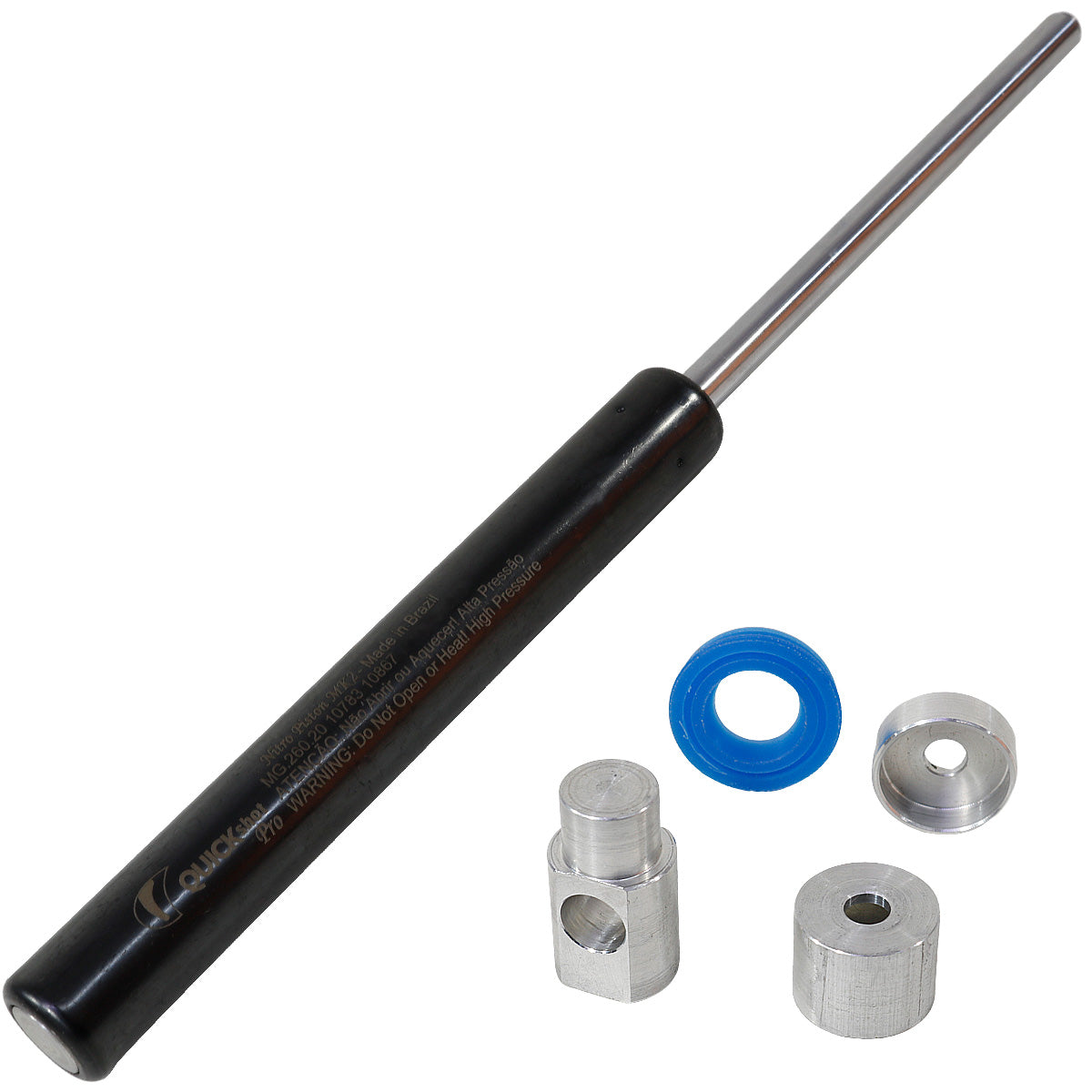

Parts Included:

• Gas Ram (Nitro Piston), 260mm.

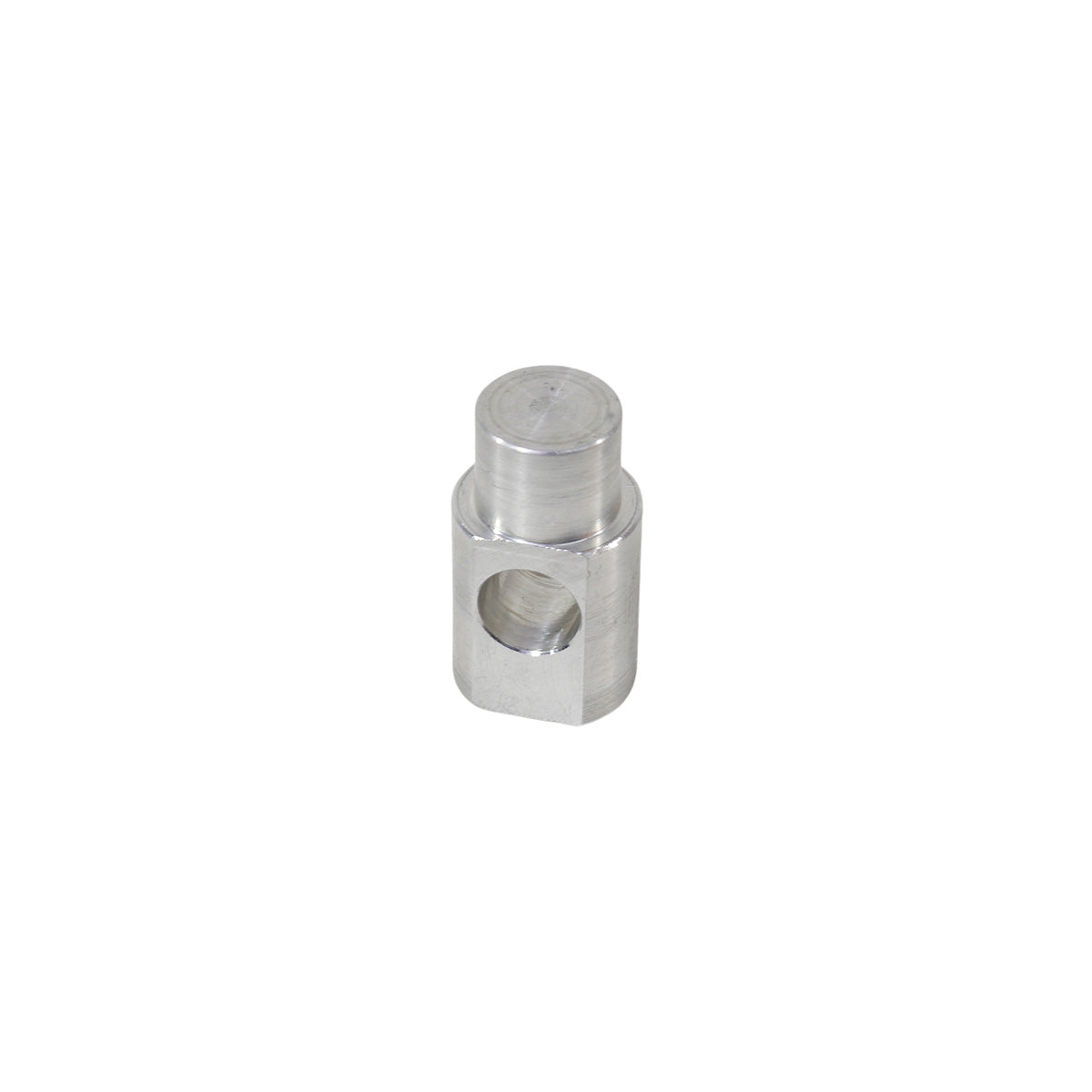

• Piston guide set.
• Quickshot piston seal.

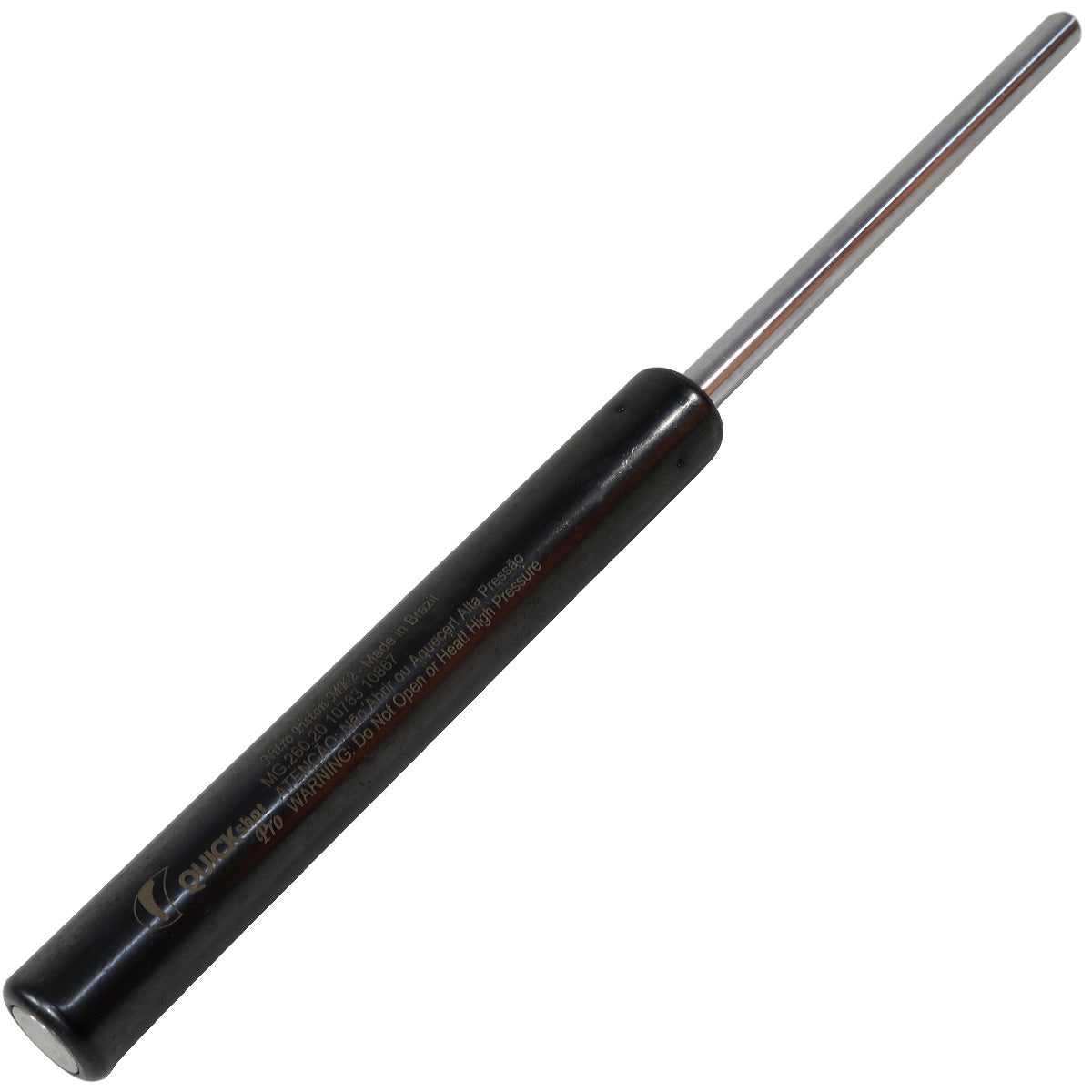

Nitro Piston specs:

• Total length: 260 mm / 10.24 in
• Cylinder length: 138 mm / 5.43 in
• Rod length: 122 mm / 4.80 in
• Cylinder diameter: 18.10 mm / 0.71 in
• Rod diameter: 8.00 mm / 0.31 in
• (Dimensions may vary by +/- 1.00mm/0.04in.)

Piston Seal specs:

• Larger OD: 25.20mm/0.992in
• Smaller OD: 24.00mm/.944in
• Height: 6.00mm/0.236in
• Smaller Inner Diameter: 12.80 mm / 0.50 in
• Larger Inner Diameter: 14.80 mm / 0.58 in

Expected muzzle energy: 21.00J to 22.50J (55Kgf/)

Compatible with: Gamo Swarm, Big Cat, CFX and CFR, Hunter 440, Wildcat, Socom, Black Shadow, Silent Cat, Varmint and many others 25mm chamber Gamo airguns.

Exclusive SMART Technology: Allows installation of the Quickshot nitro piston with the rod facing forward or backward. This flexibility changes the airgun's behavior, varying pellet velocity and enhancing the shooter's experience.

Safety Note:
The nitro piston contain inert, non-flammable nitrogen gas. Do not open, heat, or expose the nitro piston to fire.

Professional Installation: To ensure optimal performance and safety, professional installation is sugested.

Didn't find your model?  Please contact us — we’re happy to help!
